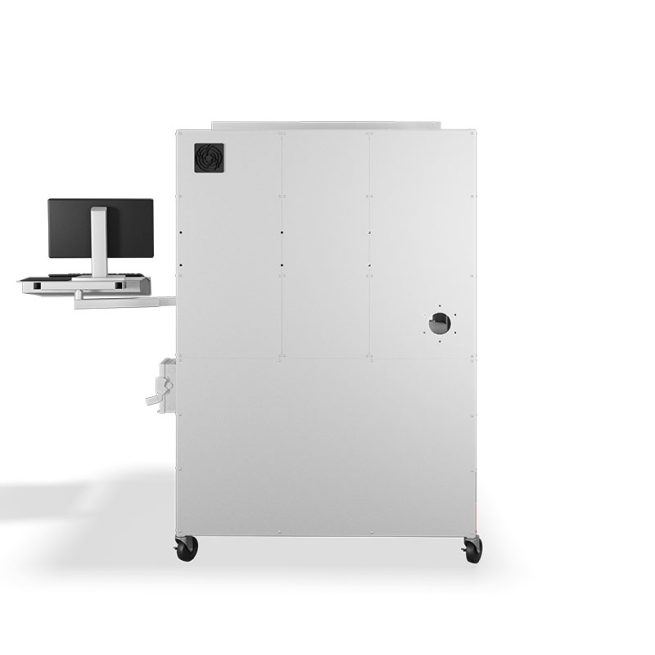

L-Series (XL Enclosure)
L-Series (XL Enclosure)

L-Series

H: 70″ x W: 48″ x D: 40″
Opening: 24″ x 38″

The L-Series system provides everything you need to easily mark larger products quickly and safely. It accommodates up to a 3.5’ part with the side panels attached. The easy-to-remove side panels allow for even larger parts. Dual doors offer quick and precise part loading. Benefits to this system include built-in compartments for the computer tower and easy access to components and storage areas. The computer monitor and control panel rest on a convenient double-jointed swing arm.

  • 12.5 “X 26.5” total marking field when using 254 mm lens
  • Can fit up to a 45″ W x 25″ D x 13.5″ H part
  • Totally programmable along X, Y and Z-axes
  • Large workspace to easily accommodate rotary options, fully enclosed large parts, or fixturing for batch marking
  • Distance Pointer for easy focusing of laser
  • Guide laser for easy part alignment
PDF Highlight

Description

Now that you have found your perfect enclosure, it’s time to start thinking about the interior components that make up your system. Every Beamer that leaves our facility is unique to the customer. Below are standard options that are available with every Beamer.

Fiber Sourced

20 Watt (FL23)

50 Watt (FL53)

100 Watt (FL103)

Marking Field Size

4.3″ x 4.3″ Marking Field

7″ x 7″ Marking Field

8.5″ x 8.5″ Marking Field

11.5″ x 11.5″ Marking Field

X, Y, & Z Axes Travel

  • File Limit Focus
  • Z-Axis travels according to parameters in the project file
  • Jog X, Y, & Z-Axes with the push of a button
